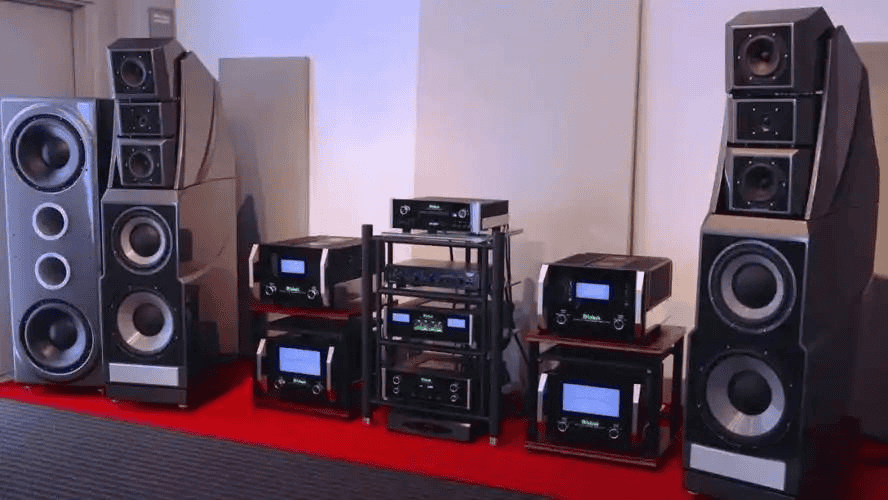

Engineering Masterpiece: McIntosh C500 and MC1.2KW Create the Ultimate Audio Experience

McIntosh's legacy of powerful performance and technical excellence is prominently displayed in their amplifier lineup. The impressive power ratings speak volumes: the MC1.2KW delivers 1200 watts, while the flagship MC2KW reaches 2000 watts, and the MC601 produces 600 watts.

In the vacuum tube domain, the MC2301 achieves 300 watts, while the classic MC275 delivers 75 watts.

The C500 Vacuum Tube Preamplifier with Separate Power Supply

The C500 represents McIntosh's commitment to engineering excellence, featuring a fully balanced design from input to output. At its heart are eight 12AX7 vacuum tubes: four dedicated to the line stage and four to the phono preamplifier section.
For MM cartridge users, the phono stage remains entirely tube-driven. MC cartridge owners benefit from McIntosh's proprietary solid-state phono step-up module rather than an input transformer.

Four of the 12AX7 tubes are prominently displayed behind the front panel, elegantly backlit in McIntosh's signature green, while the remaining four reside beneath the top cover.

Installation and Setup Considerations

The C500's control section, housing no vacuum tubes, runs cool, while the preamplifier section, containing eight tubes, requires adequate ventilation. The connection between units utilizes specialized cables reminiscent of parallel printer interfaces from early computing.

McIntosh Sales Manager Ron Cornelius emphasizes that these cables carry only control voltages, maintaining signal integrity by keeping audio pathways separate.

The control chassis features a single IEC power inlet and houses dual power supplies for each channel, establishing the C500 as a true dual-mono design. McIntosh's trademark internally-wound transformers maintain the brand's commitment to quality.
The C500's sophisticated protection circuits prevent any harsh transients during power-up, displaying a "Tube Warmup" message while maintaining output muting—a crucial feature when paired with high-powered amplifiers.

System Integration and Flexibility

The C500 showcases exceptional integration capabilities with seven data ports for system control and 12V trigger connections, enabling single-switch operation of an entire McIntosh system.
The visual impact of synchronized blue and green panels illuminating simultaneously creates an impressive display of audio engineering artistry.

Input flexibility is equally impressive, offering ±6dB level matching for each source, adjustable from your listening position.
While the input labeling system allows for basic customization through preset names and the ability to disable unused inputs, some enthusiasts might wish for fully customizable input labels, similar to BAT or Simaudio offerings.
The display offers seven brightness levels, including complete darkness for critical listening sessions.

The MC1.2KW Monoblock Power Amplifier

This imposing solid-state monoblock commands attention with its full-panel power meter, substantial handles, and half-inch thick tempered glass facade. Each amplifier measures 17.75 inches wide, 12.31 inches high, and 22 inches deep, weighing a substantial 147 pounds.
The internal layout showcases McIntosh's engineering prowess, with the proprietary Autoformer positioned in the left front, a toroidal power transformer in the right front, and the solid-state power supply centrally located.
Drive and output transistors are efficiently mounted inside the side heat sinks.

Technical Excellence

The MC1.2KW employs McIntosh's sophisticated "Quad Balanced" circuit design, delivering 1200 watts through push-pull Class AB operation.
This innovative approach splits the signal into positive and negative components (balanced), places them in push-pull configuration (dual balanced), and then combines them per channel (by block), creating a quad-balanced topology.
The amplifier achieves remarkable specifications, including a 124dB signal-to-noise ratio and merely 0.005% total harmonic distortion.

The amplifier's Autoformer technology ensures consistent 1200-watt output regardless of speaker impedance, maintaining optimal performance across 2, 4, or 8-ohm loads.

This engineering achievement, combined with McIntosh's quad balanced design, delivers extraordinarily pure and powerful audio reproduction, establishing new standards in high-end audio performance.
